300A 10KW Diesel Welder Generator 100% Standard Power Output Welding Machine

Large Image : 300A 10KW Diesel Welder Generator 100% Standard Power Output Welding Machine

Product Details:

Place of Origin:	China
Brand Name:	GENFOR
Certification:	CE
Model Number:	GFW14-300ADE

Payment & Shipping Terms:

Minimum Order Quantity:	Sample accept
Price:	50USD~559.00USD
Packaging Details:	Carton/box
Delivery Time:	20-25days
Payment Terms:	L/C, T/T
Supply Ability:	1000sets per month

Contact Now

Detailed Product Description

Max.Power:	10.0KW	Rated Power:	9.0KW
Welder Volt:	24-33V	Fuel:	Diesel
Voltage:	110~240V As Required	Speed:	50Hz 3000/60Hz 3600rpm
Welder Current:	50-300A	Electronic Diameter:	1.5-6.0mm
High Light:	portable welder generator , welder generator machine

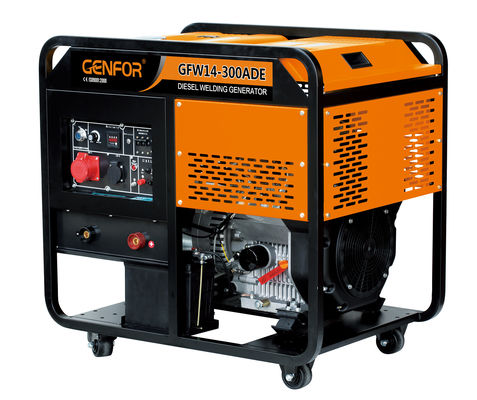

300A 10KW Diesel Welder Generator Welding Machine

Model: GFW14-300ABE

Welder Current: 50-300A

Electrode Diamter: 2.5-6.0mm

Max. Power Output: 10.0KW

Rated Power Output: 9.0KW

APPERANCE&ADVANTAGE

1. 100% Standard power output

2. Easy to operate and move.

3. 100% copper wire, and cold-rolled silicon steel

300A 10KW Diesel Welder Generator 100% Standard Power Output Welding Machine 0

TECHNICAL DATE:

Model 型号	GFW12-200AD(E)	GFW13-250AD(E)	GFW14-300ADE
Rated Welding Current(A)额定电焊电流	200	250	300
Welding voltage(DC)(v)电焊电压	24-30	24-32	25-33
Welding current range(A)电焊电流范围	50-200	50-250	50-300
Applicable ElectrodeΦ(mm)适用焊条	2.5-4.0	2.5-5.0	2.5-6.0
Duty Cycle电焊持续率	60%	60%	60%
Phase相数	Single Phase/Three Phase 单相/三相
AC Frequency(Hz) 频率	50 / 60Hz	50 / 60Hz	50 / 60Hz
Rated Output (KW) 额定输出功率	5.0/6.0	7.0/7.5	9.0/10.0
Rated Output Voltage(V)额定电压	110;120;110/220;120/240;220;230;240;220/380;230/400;240/415
Power Factor功率因数	1.0/0.8	1.0/0.8	1.0/0.8
Engine Model发动机型号	GF188F(E)	GF1100F(E)	GF292
Max. Outpput (HP)发动机最大功率	12	14	26
Displacement (cc) 排量	438	667	997
Type 发动机类型	Single-cylinder,4-stroke,Air cooled,Vertical 单缸,四冲程,风冷引擎,		Double-cylinder,Force air-cooled, 4stroke,OHV 双缸,风冷,四冲程,直喷式引擎
Compression ratio 压缩比	20:1	20:1	20:1
Starting System启动方式	Rical/Electric 手动/电动
Lubrication Systerm 润滑系统	Forced Lubrication 压力润滑
Fuel Tank 油箱容量(L)	15	25	25
Oil Capacity 机油容量(L)	1.65	2	4
Noise Level (Db/7m)噪音等级(7米内)	78	78	78
Packing Dimensions(mm) 包装尺寸	750x525x630	780x580x750	975x675x945
Gross Weight(kg) 毛重	105	135	248
注:型号中的“E”表示电启动,.Note: " E" in the model means electric start

FAQ

1. Are you trading company or manufacturer ?
Re: We are manufacturer in Fuan city, Fujian province, China.

2. What's your warranty period ?
Re: The goods are under warranty for a period 12 months or 1000 hours.
(except the damageable caused by incorrect man-made operation)

3. What's your MOQ?
Re: 1 piece.

4. What's your payment term?
Re: TT: 30% deposit and 70% balance within 20 days since shippemnt date.
LC: 100% irrevocable LC.

5. How to visit your factory?
Re: 2 hours from ChangLe, Fuzhou airport by car.
40 minutes from Fuan Train Station by car.
