| Max.Power: | 6.0KW | Rated Power: | 5.0KW |
|---|---|---|---|
| Voltage: | 110~240V As Required | Speed: | 50Hz 3000/60Hz 3600rpm |
| Fuel: | Diesel | Welder Current: | 50-200A |
| Welder Volt: | 24-30V | Electronic Diameter: | 2.5-4.0mm |
| High Light: | portable welder generator,welder generator machine |
||

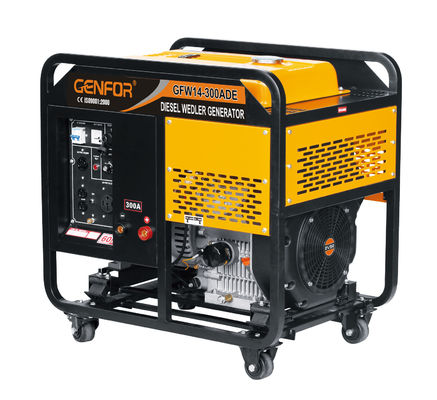

DC 220A 192FE Air-Cooled Sinle Cylinder Engine Diesel Welder Generator ARC Welding
Diesel Welder Generator
Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine.
Welding voltage: 24-30v
* Rated current: 200A
* Electrode φ Mm: 2.5-4.0
Model:GFW200AD/GFW11-220ADE/SE6500WL
* Automatic air bleeding mechanism
* AC Voltmeter
* DC Output*
AC Circuit Breakers
* DC Fuse Protection
* Full-power Switch on Dual Voltage
* Extra Large Fuel Tank with FuelGauge
* Large Capacity Silent Muffler
Optional Equipped
* Low Oil Shut Down
* 4-wheel Kit
* Electric Starter*Battery
* Remote start function
TECHNICAL DATE:
|
Model 型号 |
GFW11-200AD(E) |
GFW11-220AD(E) |
GFW11-250AD(E) |
|
Rated Welding Current(A)额定电焊电流 |
200 |
220 |
250 |
|
Welding voltage(DC)(v)电焊电压 |
24-30 |
24-30 |
24-32 |
|
Welding current range(A)电焊电流范围 |
50-200 |
50-220 |
50-250 |
|
Applicable ElectrodeΦ(mm)适用焊条 |
2.5-4.0 |
2.5-4.0 |
2.5-5.0 |
|
Duty Cycle电焊持续率 |
60% |
60% |
60% |
|
Phase相数 |
Single Phase 单相/Three Phase三相 |
||
|
AC Frequency(Hz) 频率 |
50 / 60Hz |
50/60 Hz |
50 / 60Hz |
|
Rated Output (KW) 额定输出功率(KW) |
5.0/6.0 |
6.0/7.0 |
7.0/7.5 |
|
Rated Output Voltage(V)额定电压 |
110;120;220;230;240;110/220;120/240;220/380;230/400; |
||
|
Power Factor功率因数 |
1.0/0.8 |
1.0/0.8 |
1.0/0.8 |
|
Engine Model发动机型号 |
GF188F(E) |
GF192FE |
GF1100F(E) |
|
Max. Outpput (HP)发动机最大功率 |
12.0 |
13.0 |
14.0 |
|
Displacement (cc) 排量(cc)) |
438 |
498 |
667 |
|
Type 发动机类型 |
Single-cylinder,4-stroke,Air cooled,Vertical 单缸,四冲程,风冷引擎, |
||
|
Compression ratio 压缩比 |
20:1 |
20:1 |
20:1 |
|
Starting System启动方式 |
Rical/Electric 手动/电动 |
||
|
Lubrication Systerm 润滑系统 |
Forced Lubrication 压力润滑 |
||
|
Fuel Tank 油箱容量(L) |
15 |
15 |
25 |
|
Oil Capacity 机油容量(L) |
1.65 |
1.65 |
2 |
|
Noise Level (Db/7m) |
78 |
78 |
78 |
|
Packing Dimensions(mm) 包装尺寸 |
810X570X530 |
810x570x530 |
840x580x650 |
|
Gross Weight(kg) 毛重 |
105 |
110 |
130 |
|
注:型号中的“E”表示电启动,.Note: " E" in the model means electric start |
|||
