Product Details:
Payment & Shipping Terms:
|
| Outlet Size: | 4"/100mm | Inlet Ize: | 4"/1000mm |
|---|---|---|---|
| Fuel Tank: | 6L | Lift(M): | 25m |
| Suction: | 7m | Engine Type: | GF177F |
| 40HQ: | 440pcs | 20GP: | 200pcs |
| High Light: | high pressure irrigation pumps,petrol water pump |
||

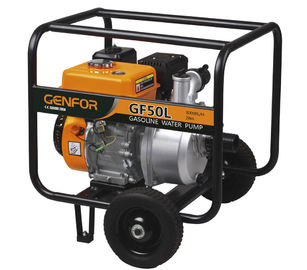

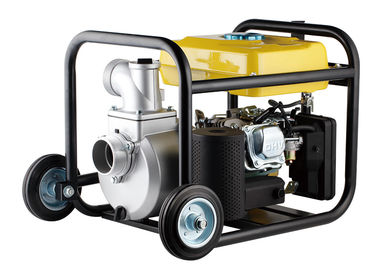

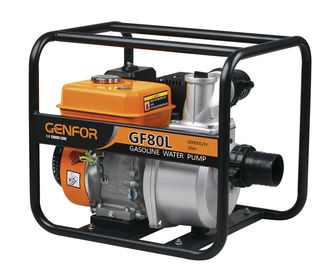

4inch Fuel Pump Gasoline Water Pump Engine Pump 177F 9HP Motor Pump Wheels
APPERANCE&ADVANTAGE
|
Technical Date |
|||
|
Model |
GF50L |
GF80L |
GF100L |
|
Water Pump Type |
Self-priming pump |
Self-priming pump |
Self-priming pump |
|
Outlet Size(inch)/(mm) |
2"/50 |
3"/80 |
4"/100 |
|
Inlet Size(inch)/(mm) |
2"/50 |
3"/80 |
4"/100 |
|
Displacement(m3/h) |
30 |
60 |
80 |
|
Lift(m) |
28 |
30 |
25 |
|
Suction(m) |
7 |
7 |
7 |
|
Engine Model |
GF168F |
GF170F |
GF170F |
|
Max Power Output |
5.8HP(4.3kw)/3600rpm |
7.0HP(4.8kw)/3600rpm |
7.0HP(6.6kw)/3600rpm |
|
Recommended Power Using |
5HP(3.7kw)/3600rpm |
6.0HP(4.1kw)/3600rpm |
6.0HP(5.7kw)/3600rpm |
|
Starting System |
Recoil |
Recoil |
Recoil |
|
Fuel |
93# or 97# |
93# or 97# |
93# or 97# |
|
Fuel Tank Capacity(L) |
3.6 |
3.6 |
6 |
|
Packing Dimensions(mm) |
460*385*385 |
510*385*455 |
630*470*590 |
|
Net Weight(kgs/lbs) |
25/55.1 |
30/66.1 |
48/10.8 |
|
Per 20'GP CNT |
415 |
315 |
126 |
|
Per 40'GP CNT |
870 |
645 |
348 |
Quality & Inspection
100% check spare parts quality which produced from matching suppliers.
QC checking each step from spare parts to production on the full of line.
Package
Stardard exported color carton.
We will use standard exported package if no special requirments, but it is available to provide colour package according to your design or we make design for you using your brand basing on the quantity more than 200pcs.
