Product Details:
Payment & Shipping Terms:
|
| Max.Power: | 8.5KW | Rated Power: | 8.0KW |
|---|---|---|---|
| Shaft Ouput: | As Request | Voltage Regulator: | AVR |
| Speed: | 3600rpm 60Hz / 3000rpm 50Hz | Copper Wire: | 100% Copper |
| Brush: | Yes | Voltage: | As Request |
| High Light: | high efficiency alternator,high output mini alternator |
||

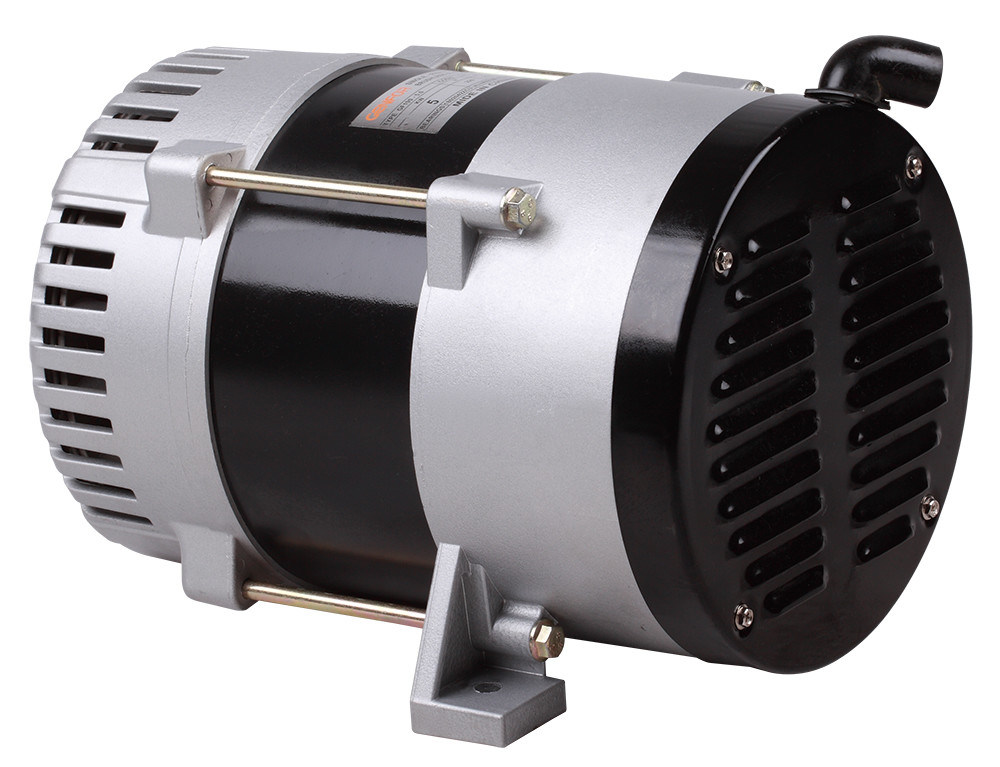

8KW Professional High Output Alternator High-Effency Dynamo Single Phase Alternator
Model: GFA13-8.0
Max. Power Output: 8.5KW
Rated Power Output: 8.0KW
Shaft type: 1:5/1:5333
|
TECHNICAL DATE |
||||||||||
|
Type |
Rated Power (KVA) |
Max Power (KVA) |
Overall&Mounting Dimensions (mm) |
|||||||
|
A |
B |
C |
E |
ΦF |
Taper |
|||||
|
GFA13-8.0 |
50Hz-3000r.p.m |
8.0 |
8.5 |
366 |
250 |
85 |
47 |
26 |
1:5/1:5.333 |
|
|
60Hz-3600r.p.m |
8.5 |
9.0 |
||||||||
|
GFA13-9.0 |
50Hz-3000r.p.m |
9.0 |
9.5 |
312 |
115 |
100 |
|
|
|
|
|
60Hz-3600r.p.m |
9.5 |
10.0 |
||||||||
|
GFA13-10 |
50Hz-3000r.p.m |
10.0 |
10.5 |
337 |
245 |
125 |
||||
|
60Hz-3600r.p.m |
10.5 |
11.0 |
||||||||
|
GFA14-11 |
50Hz-3000r.p.m |
11.0 |
11.5 |
390 |
235 |
100 |
|
|
|
|
|
60Hz-3600r.p.m |
11.5 |
12.0 |
||||||||
|
GFA14-12 |
50Hz-3000r.p.m |
12.0 |
12.5 |
401 |
285 |
150 |
||||
|
60Hz-3600r.p.m |
12.5 |
13.0 |
||||||||
Insulation Class:CL.F(△T≦130K)
Power Factor:CosΦ=1(Single-phase);CosΦ=0.8(Three-phase)
Rated Voltage:110,115,120,220,230,240,110/220,115/230,120/240,220/380,230/400
DC Output:12V/8.3A(Optional)
Excitation Type: Brush & Brushless
Delivery.
Generally, it will take 15 to 20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
We will recommend the most suitable shipping method for you.
Package.
We have different original packages for selling in different counties.
we also can custom the packages as you want..
We have strict packaging to ensure that the goods are not damaged and safely reach your hands.
