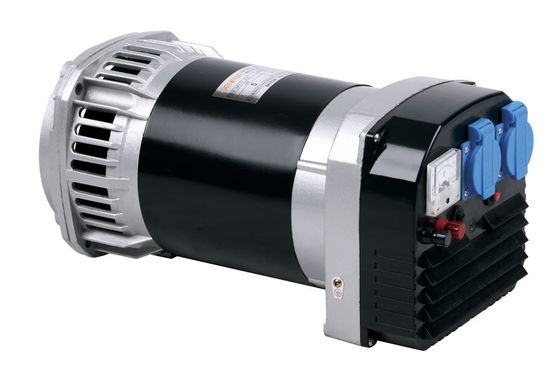

3500 2 Pole Dynamo High Output Alternator AC Alternator

3500 2 Pole Dynamo  High Output Alternator AC Alternator
3500 2 Pole Dynamo  High Output Alternator AC Alternator 3500 2 Pole Dynamo  High Output Alternator AC Alternator 3500 2 Pole Dynamo  High Output Alternator AC Alternator 3500 2 Pole Dynamo  High Output Alternator AC Alternator 3500 2 Pole Dynamo  High Output Alternator AC Alternator

Large Image :  3500 2 Pole Dynamo High Output Alternator AC Alternator

Product Details:

Place of Origin: China
Brand Name: GENFOR
Certification: CE
Model Number: GFA190-3.05

Payment & Shipping Terms:

Minimum Order Quantity: Sample accept
Price: Negotiable
Packaging Details: Carton/box
Delivery Time: 20-25days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per month
Detailed Product Description
Max.Power: 4.0KW Rated Power: 3.5KW
Brush: Yes Voltage: As Request
Shaft Ouput: As Request Speed: 3600rpm 60Hz / 3000rpm 50Hz
Copper Wire: 100% Copper Voltage Regulator: AVR
High Light:

high performance alternator

,

high output mini alternator

3500 2 Pole Dynamo High Output Alternator AC Alternator

Model: GFA190-3.5

Max. Power Output: 4.0KW

Rated Power Output: 3.5KW



Insulation Class:CL.F(△T≦130K)

Power Factor:CosΦ=1(Single-phase);CosΦ=0.8(Three-phase)

Rated Voltage:110,115,120,220,230,240,110/220,115/230,120/240,220/380,230/400

DC Output:12V/8.3A(Optional)

Excitation Type:Brush&Brushless

Remarks:Dimensions marked above are according to Honda engine GX390

3500 2 Pole Dynamo  High Output Alternator AC Alternator 03500 2 Pole Dynamo  High Output Alternator AC Alternator 13500 2 Pole Dynamo  High Output Alternator AC Alternator 2





型号Type 额定功率Rated Power (KVA) 最大功率Max Power (KVA) 机器总尺寸及安装尺寸
Overall&Mounting Dimensions
A B C E ΦF Taper
GFA190-3.0 50Hz-3000r.p.m 3.0 3.3 297 205 85


47/63.2



26/25.4



1:5/1:5.333
60Hz-3600r.p.m 3.3 3.6
GFA190-3.5 50Hz-3000r.p.m 3.5 3.8 312 220 100
60Hz-3600r.p.m 4.0 4.4
GFA190-4.0 50Hz-3000r.p.m 4.0 4.5 337 245 125
60Hz-3600r.p.m 4.5 5.0
GFA190-5.0 50Hz-3000r.p.m 5.0 5.5 352 260 140
60Hz-3600r.p.m 5.8 6.4
GFA190-6.0 50Hz-3000r.p.m 6.0 5.5 362 270 150
60Hz-3600r.p.m 7.0 7.5
GFA190-7.0 50Hz-3000r.p.m 7.0 7.5 372 280 160
60Hz-3600r.p.m 7.5 8.0
GFA190-7.5 50Hz-3000r.p.m 7.5 8.0 377 285 165
60Hz-3600r.p.m 8.0 8.5
Note:The data for your information only ,and changes based on practicality

Delivery.

Generally, it will take 15 to 20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

We will recommend the most suitable shipping method for you.

Package.

We have different original packages for selling in different counties.
we also can custom the packages as you want..

We have strict packaging to ensure that the goods are not damaged and safely reach your hands.

3500 2 Pole Dynamo  High Output Alternator AC Alternator 3

FAQ

1.Are you trading company or manufacturer ?
Re: We are manufacturer in Fuan city, Fujian province, China.

2.What's your warranty period ?
Re:The goods are under warranty for a period 12 months or 1000 hours.
(except the damageable caused by incorrect man-made operation)

3.What's your MOQ?
Re: 1 piece.

4.What's your payment term?
Re: TT: 30% deposit and 70% balance within 20 days since shippemnt date.
LC: 100% irrevocable LC.

5.How to visit your factory?
Re:2 hours from ChangLe, Fuzhou airport by car.
40 minutes from Fuan Train Station by car.
