130A PMG Permanent Magnet Welder 110 - 240V Voltage Gasoline Fuel Type

China FUAN GENFOR POWER EQUIPMENT CO., LTD. certification
I'm Online Chat Now

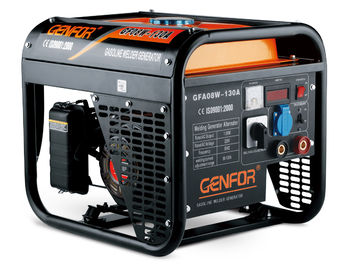

130A PMG Permanent Magnet Welder 110 - 240V Voltage Gasoline Fuel Type

130A PMG Permanent Magnet Welder 110 - 240V Voltage Gasoline Fuel Type
130A PMG Permanent Magnet Welder 110 - 240V Voltage Gasoline Fuel Type

Large Image :  130A PMG Permanent Magnet Welder 110 - 240V Voltage Gasoline Fuel Type

Product Details:

Place of Origin: China
Brand Name: GENFOR
Certification: CE
Model Number: GFA08W-130AG

Payment & Shipping Terms:

Minimum Order Quantity: Sample accept
Price: Negotiable
Packaging Details: Carton/box
Delivery Time: 20-25days
Payment Terms: L/C, T/T
Supply Ability: 1000sets per month
Detailed Product Description
Max.Power: 1.0KW Voltage: 110~240V As Required
Speed: 60Hz 3600rpm Fuel: Gasoline
Welder Current: 30-130A Welder Volt: 19-26V
Electronic Diameter: 1.5-3.0mm Engine Model: GF170FB
High Light:

genset welder generator

,

pmg welding generator

130A Permanent Magnet Welder PMG Generator



Advantage

1. 100% Standard power output

2. Easy to operate and move.

3. 100% copper wire,and cold-rolled silicon steel



130A PMG Permanent Magnet Welder 110 - 240V Voltage Gasoline Fuel Type 0130A PMG Permanent Magnet Welder 110 - 240V Voltage Gasoline Fuel Type 1



Package

We have different original packages for selling in different counties.
we also can custom the packages as you want..

We have strict packaging to ensure that the goods are not damaged and safely reach your hands.



Delivery

Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

We will recommend the most suitable shipping method for you.



Technical Date







Model 型号

GFA08W-130AG

GFA08W-160AG

Rated Welding Current(A)额定电焊电流

130

160

Welding voltage(DC)(v)电焊电压

19-26

22-28

Welding current range(A)电焊电流范围

40-130A

50-160A

Applicable ElectrodeΦ(mm)适用焊条

1.5-3.2

2.5-4.0

Duty Cycle电焊持续率

60%

60%

Phase相数

Single Phase 单相

Single Phase 单相

AC Frequency(Hz) 频率

3600/50 or 60Hz

3600/60Hz

Rated Output (KW) 额定输出功率(KW)

1.0KW

0KW

Rated Output Voltage(V)额定电压

220-240

220-240

Power Factor功率因素

1

1

Engine Model发动机型号

GF170FB

GF170FB

Max. Outpput (HP)发动机最大功率

8.0

8.0

Displacement (cc) 排量(cc))

223

223

Type 发动机类型

Single-cylinder,4-stroke,Air cooled,OHV 单缸,四冲程,风冷引擎,OHV

Compression ratio 压缩比

8.3:1

8.3:1

Starting System启动方式

Rical/Electric 手动/电动

Lubrication Systerm 润滑系统

Forced Lubrication 压力润滑

Forced Lubrication 压力润滑

Fuel Tank 油箱容量(L)

9

9

Oil Capacity 机油容量(L)

0.6

0.6

Noise Level (Db/7m)噪音等级(7米内)

66

66

Packing Dimensions(mm) 包装尺寸(mm)

540*450*460

540*450*460

Gross Weight(kg)

38

39
