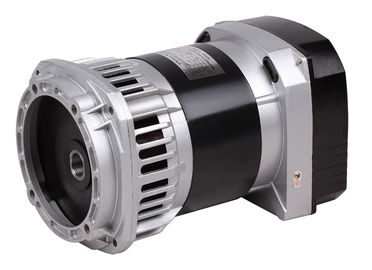

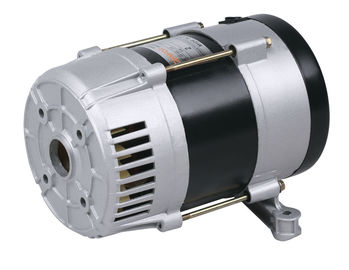

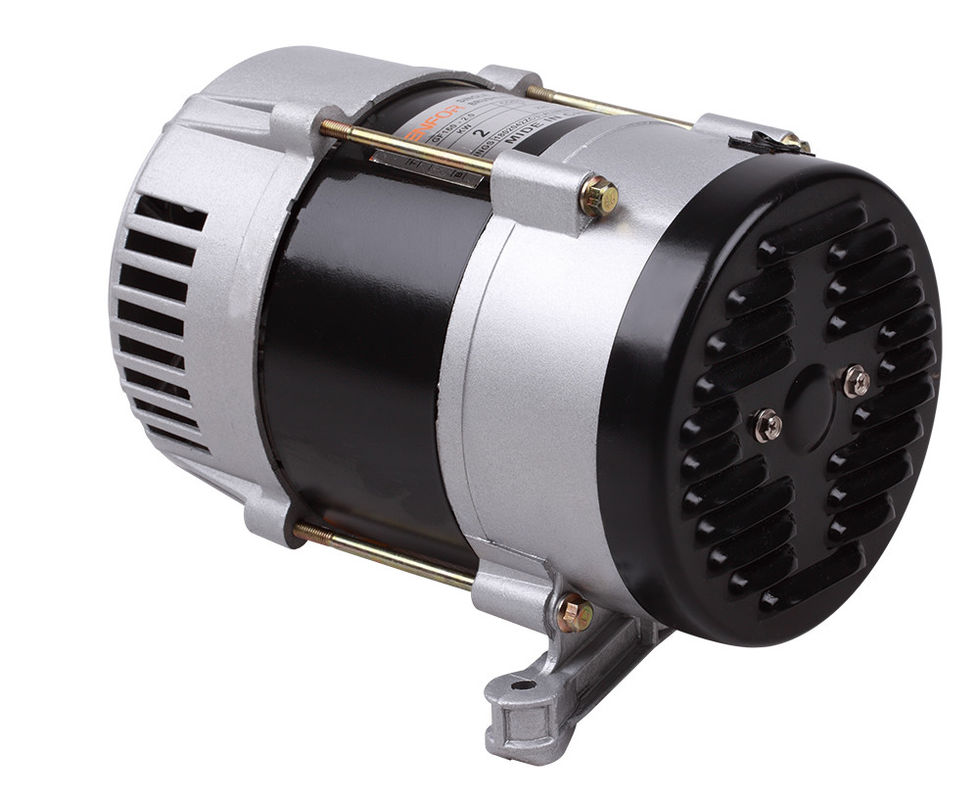

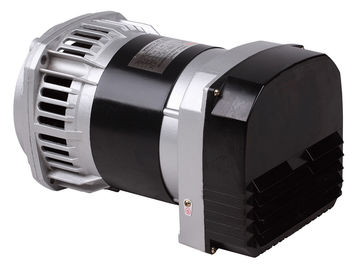

Direct Connection High Output Alternator 2.5KW

Direct Connection High Output Alternator 2.5KW
Direct Connection High Output Alternator 2.5KW Direct Connection High Output Alternator 2.5KW Direct Connection High Output Alternator 2.5KW Direct Connection High Output Alternator 2.5KW

Large Image :  Direct Connection High Output Alternator 2.5KW

Product Details:

Place of Origin: China
Brand Name: GENFOR
Certification: CE
Model Number: GFA160-2.5

Payment & Shipping Terms:

Minimum Order Quantity: Sample accept
Price: 20~69USD
Packaging Details: Carton/box
Delivery Time: 20-25days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Max.Power: 2.5 KW Rated Power: 2.7 KW
Material: Cast Aluminum Shell Voltage: 110~240V As Required
Speed: 50Hz 3000/60Hz 3600rpm Copper Wire: 100% Copper
Shaft Ouput: As Request AVR: Yes
High Light:

high performance alternator

,

high output mini alternator

Direct Connection High Output Alternator 2.5KW

Model: GFA160-2.5

Max. Power Output: 2.8KW

Rated Power Output: 2.5KW



1.Cast aluminum shell

2.Easy to install with many kinds of machine,such as gasoline/diesel engine

3.100% copper wire,and cold-rolled silicon steel

Direct Connection High Output Alternator 2.5KW 0

Package.

We have different original packages for selling in different counties.
we also can custom the packages as you want..

We have strict packaging to ensure that the goods are not damaged and safely reach your hands.

Delivery.

Generally, it will take 15 to 20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

We will recommend the most suitable shipping method for you.

TECHNICAL DATE:

型号Type 额定功率Rated Power (KVA) 最大功率Max Power (KVA) 机器总尺寸及安装尺寸
Overall&Mounting Dimensions
A B C E ΦF Taper
GFA160-1.0 50Hz-3000r.p.m 1.0 1.1 221 157 54
23/
52.3
17/
19.05
1:5/
1:5.333
60Hz-3600r.p.m 1.2 1.3
GFA160-1.3 50Hz-3000r.p.m 1.3 1.4 227 163 60
60Hz-3600r.p.m 1.5 1.7
GFA160-1.5 50Hz-3000r.p.m 1.5 1.7 237 173 70
60Hz-3600r.p.m 1.8 2.0
GFA160-2.0 50Hz-3000r.p.m 2.0 2.2 252 188 85
60Hz-3600r.p.m 2.2 2.5
GFA160-2.5 50Hz-3000r.p.m 2.5 2.8 277 213 110
60Hz-3600r.p.m 2.8 3.0
GFA160-3.0 50Hz-3000r.p.m 3.0 3.2 287 223 120
60Hz-3600r.p.m 3.2 3.3

PRODUCING DEPARTMENT

Direct Connection High Output Alternator 2.5KW 1



FAQ

1.Are you trading company or manufacturer ?
Re: We are manufacturer in Fuan city, Fujian province, China.

2.What's your warranty period ?
Re:The goods are under warranty for a period 12 months or 1000 hours.
(except the damageable caused by incorrect man-made operation)

3.What's your MOQ?
Re: 1 piece.

4.What's your payment term?
Re: TT: 30% deposit and 70% balance within 20 days since shippemnt date.
LC: 100% irrevocable LC.

5.How to visit your factory?
Re:2 hours from ChangLe, Fuzhou airport by car.
40 minutes from Fuan Train Station by car.
