| Electrode Diameter: | 2.5-4.0mm | Speed: | 60Hz 3600rpm |
|---|---|---|---|
| Welder Current: | 50-200A | Material: | Aluminum Casting |
| Max.Power: | 6.0 KW | Rated Power: | 5.5 KW |
| Welder Volt: | 22-30V | Voltage: | 110~240V As Required |
| High Light: | alternator welder kit,high power alternator welder |
||

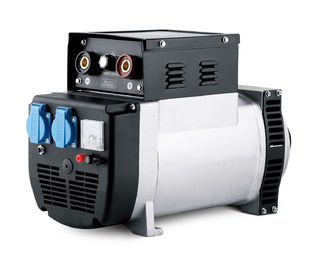

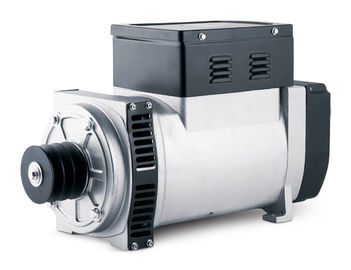

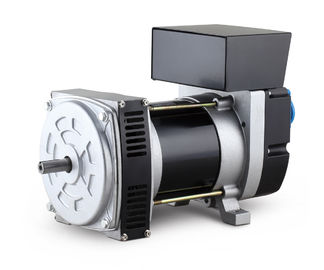

DC200A Pully Belt Welder AC Brush Alternator Welding Machine Welder Dynamo DC Welder
Model type: GFA11-200A B3
Standy Power: 6.0KW
Rated Power: 5.0KW
Shaft Type: Taper Shaft 1:5/1:5.333
APPERANCE&ADVANTAGE
1. Cast aluminum shell
2. Easy to install with many kinds of machine,such as gasoline/diesel engine
3. 100% copper wire,and cold-rolled silicon steel
Delivery.
Generally, it will take 15 to 20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
We will recommend the most suitable shipping method for you.
|
|
|
|
Welding Alternator |
Shaft Photo |
|
ang of speed |
Frequency |
Max.output (KW) |
Power voltage |
Welding DC voltage(V) |
Applicable Electrode (mm) |
Duty Cycle |
Welding current adjustment(A) |
|
|
GFA10W-130AB3 |
3000-3600 |
50/60 |
2.8/3.0 |
110,120, |
20-26 |
2.5-3.2 |
60% |
30-130A |
|
GFA10W-150A B3 |
3000-3600 |
50/60 |
3.0/3.2 |
110,120, |
20-26 |
2.5-3.2 |
60% |
30-150A |
|
GFA11W-200A B3 |
3000-3600 |
50/60 |
5.0/5.5 |
110,120,220,240, 220/380,230/400 |
22-30 |
2.5-4.0 |
60% |
50-200A |
|
GFA11W-220A B3 |
3000-3600 |
50/60 |
6.0/6.5 |
110,120,220,240, 220/380,230/400 |
22-30 |
2.5-5.0 |
60% |
50-220A |
|
GFA11W-250A B3 |
3000-3600 |
50/60 |
7.0/7.5 |
110,120,220,240, 220/380,230/400 |
22-30 |
2.5-5.0 |
60% |
50-250A |
Package.
We have different original packages for selling in different counties.
we also can custom the packages as you want..
We have strict packaging to ensure that the goods are not damaged and safely reach your hands.
