Speed: | 60Hz 3600rpm/ 50hz 3000rpm | Welder Current: | 130A |
---|---|---|---|
Welder Volt: | 22-26V | Fuel: | Gasoline |
Electronic Diameter: | 1.5-3.0mm | Rated Power: | 3.0KW |
Pressure: | 115 PSI/8 Bar | Air Tank Capacity: | 19L |
Fuel Tank: | 23L | Engine: | 170FB |
High Light: | welding generator set,welder generator machine |

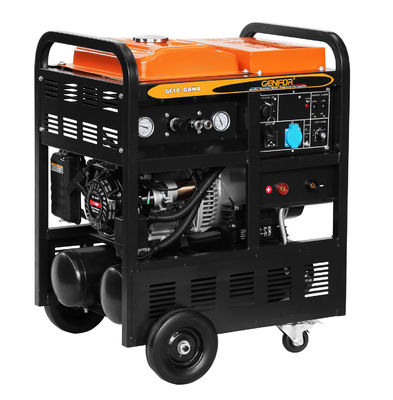

130A Gasoline Compressor Welder Generator Versatile Machine
Model: GF10-GAWA
Welder Current: 130A
Electrode Diamter: 1.5-3.0mm
Power Outpu: 2.8/3.0KW
Features
l Designed for better heat radiation,better engine output, stronger power
l AVR adjusts voltage and currency automatically while performs more intelligently and reliably
l Multi-Function, Versatile and Compact: AC generator, current welder,air compressor, DC charger / LED light
l MDS rectification structure, steady performance,long life, easy maintenance and high efficiency.Stable and long time 5kW AC output
l Easy start. Low fuel consumption. Attractive design
l Stable and Reliable consistent work with 4.0mm welding rod
l Guarantee for stable and reliable work for middle or small air tools
技术参数 TECHNICAL DATE |
||||
型号 Model |
GF10-GAWA |
GF11-GAWA |
||
发电机 |
频率Frequency(Hz) |
50/60 |
50/60 |
|
功率Power(KW) |
2.6/3.0 |
5.0/6.0 |
||
电压Voltage(V) |
110,120,110/120,120/240,220,230,240 |
|||
功率因数Power factor |
1 |
|||
直流 DC |
12V/8.3A |
|||
电焊机 |
电焊空载电压 |
68-78 |
70-85 |
|
电焊电压 |
22-28 |
24-30 |
||
电焊电流Welding current(A) |
130A |
200A |
||
电流调节范围 |
30-130A |
40-200A |
||
电焊持续率 Duty cycle |
60% |
60% |
||
空压机 |
电机功率 Motor power(HP) |
2.5HP |
2.5HP |
|
缸径Cylinder bore(MM) |
47mm |
47mm |
||
压力 |
PSI |
115 |
115 |
|
Bar |
8 |
8 |
||
排量 |
L/min |
232 |
232 |
|
CFM |
8.2 |
8.2 |
||
储气罐 Air tank capacitor(L) |
19 |
24 |
||
发动机 |
类型Type |
Single cylinder,air-cooled ,4-stroke 单缸风冷四冲程引擎 |
||
型号Engine Model |
GF170FB |
GF190FE |
||
动力功率(HP) |
8 |
15 |
||
排量Displacement |
223 |
420 |
||
油箱容量 Fuel Tank capacity(L) |
11 |
23 |
||
外观尺寸Dimension(mm) |
800*590*820 |
830*600*850 |
||
净重N.W.(KG) |
98 |
128 |
