| Max.Power: | 3.0KW | Rated Power: | 2.8KW |
|---|---|---|---|
| Electronic Diameter: | 1.5-3.2mm | Voltage: | 110~240V As Required |
| Speed: | 50Hz 3000/60Hz 3600rpm | Fuel: | Gasoline |
| Welder Current: | 30-130A | Welder Volt: | 19-26V |
| High Light: | welding generator set,genset welder generator |
||

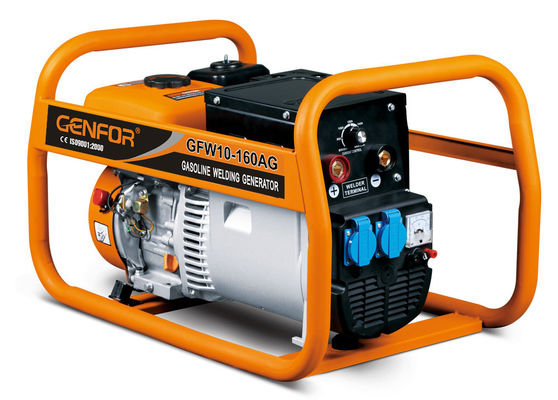

130A Welding 4-Stroke Gasoline Petrol Portable Welder Generator DC Welding Machine
Advantage
1. 100% Standard power output
2. Easy to operate and move.
3. 100% copper wire,and cold-rolled silicon steel
Technical Date
|
Model 型号 |
GF10W-130AG(E) |
GF10W-130AGB(E) |
|
Rated Welding Current(A)额定电焊电流 |
130 |
130 |
|
Welding voltage(DC)(v)电焊电压 |
19-26 |
19-26 |
|
Welding current range(A)电焊电流范围 |
30-130A |
30-130A |
|
Applicable ElectrodeΦ(mm)适用焊条 |
1.5-3.2 |
1.5-3.2 |
|
Duty Cycle电焊持续率 |
60% |
60% |
|
Phase相数 |
Single Phase 单相 |
Single Phase 单相 |
|
AC Frequency(Hz) 频率 |
3000/3600/50 or 60Hz |
3000/3600/50 or 60Hz |
|
Rated Output (KW) 额定输出功率(KW) |
2.8KW |
2.8KW |
|
Rated Output Voltage(V)额定电压 |
110;120;110/220;120/240;220;230;220/380;230/400;240/415 |
|
|
Power Factor功率因素 |
1 |
1 |
|
Engine Model发动机型号 |
GF170FB |
GF170FB |
|
Max. Outpput (HP)发动机最大功率 |
8.0 |
8.0 |
|
Displacement (cc) 排量(cc)) |
223 |
223 |
|
Type 发动机类型 |
Single-cylinder,4-stroke,Air cooled,OHV 单缸,四冲程,风冷引擎,OHV |
|
|
Compression ratio 压缩比 |
8.3:1 |
8.3:1 |
|
Starting System启动方式 |
Rical/Electric 手动/电动 |
|
|
Lubrication Systerm 润滑系统 |
Forced Lubrication 压力润滑 |
Forced Lubrication 压力润滑 |
|
Fuel Tank 油箱容量(L) |
3.6 |
9 |
|
Oil Capacity 机油容量(L) |
0.6 |
0.6 |
|
Noise Level (Db/7m)噪音等级(7米内) |
66 |
66 |
|
Packing Dimensions(mm) 包装尺寸 |
710X*440X430 |
710X*440X430 |
|
Gross Weight(kg) 毛重 |
71 |
90 |
Package
We have different original packages for selling in different counties.
we also can custom the packages as you want..
We have strict packaging to ensure that the goods are not damaged and safely reach your hands.
Delivery
Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
We will recommend the most suitable shipping method for you.
