Product Details:
Payment & Shipping Terms:
|
Welder Current: | 30-130A | Welder Volt: | 20-26V |
---|---|---|---|
Material: | Cast Aluminum Shell | Max.Power: | 3.0 KW |
Rated Power: | 2.8 KW | Voltage: | 110~240V As Required |
Speed: | 50Hz 3000/60Hz 3600rpm | Electrode Diameter: | 1.5-3.0mm |
High Light: | diy alternator welder,high power alternator welder |

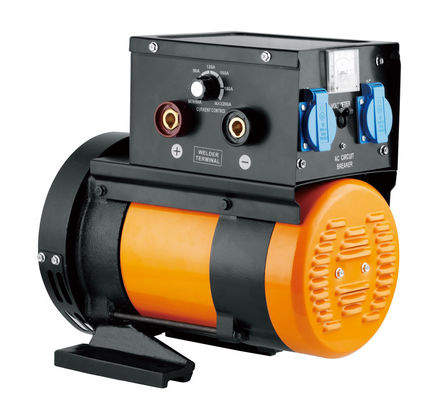

130A AC Double-Use Machine Alternator Welding Machine Welder Dynamo DC130A Welder
Model type: GFA10-130A
Shaft Type: Taper Shaft 1:5/1:5.333
Standy Power: 3.0KW
Rated Power: 2.8KW
APPERANCE&ADVANTAGE
1. Cast aluminum shell
2. Easy to install with many kinds of machine,such as gasoline/diesel engine
3. 100% copper wire,and cold-rolled silicon steel
Type | Rang of speed | Frequency | Max.output (KW) | Power voltage | Welding DC voltage(V) | Applicable Electrode (mm) | Duty Cycle | Welding current adjustment(A) |
GFA10W-130A | 3000-3600 | 50/60 | 2.8/3.0 | 110,120, | 20-26 | 2.5-3.2 | 60% | 30-130A |
GFA10W-150A | 3000-3600 | 50/60 | 3.0/3.2 | 110,120, | 20-26 | 2.5-3.2 | 60% | 30-150A |
GFA11W-200A | 3000-3600 | 50/60 | 5.0/5.5 | 110,120,220,240, 220/380,230/400 | 22-30 | 2.5-4.0 | 60% | 50-200A |
GFA11W-220A | 3000-3600 | 50/60 | 6.0/6.5 | 110,120,220,240, 220/380,230/400 | 22-30 | 2.5-5.0 | 60% | 50-220A |
GFA11W-250A | 3000-3600 | 50/60 | 7.0/7.5 | 110,120,220,240, 220/380,230/400 | 22-30 | 2.5-5.0 | 60% | 50-250A |
Package.
We have different original packages for selling in different counties.
we also can custom the packages as you want..
We have strict packaging to ensure that the goods are not damaged and safely reach your hands.
Delivery.
Generally, it will take 15 to 20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
We will recommend the most suitable shipping method for you.
